Inline Magazine Case Erector
Inline Magazine Case Erector is a solution designed to automatically form and seal corrugated boxes in a continuous production line.With an inline design, it seamlessly integrates with existing conveyor systems, optimizing floor space and workflow. Built with robust components and user-friendly controls, the Inline Case Erector delivers reliable performance, quick changeovers, and long-term operational efficiency.
Speed
10 – 15 Cases/min
Delivery Time
6–8 Weeks
Packaging
Wooden Crate
Material
Stainless Steel & MS
This machine handles various cartons of different sizes by simply setting the box, folding into the lower wing, and pasting tape. The machine has the characteristics of rational design, precision, long service life, and high efficiency.
The tape divider includes three compacting tape rolls, offering greater stability compared to traditional systems with only two rolls. The equipment supports both standalone and inline operation with automated assembly lines.
The tape divider includes three compacting tape rolls, offering greater stability compared to traditional systems with only two rolls. The equipment supports both standalone and inline operation with automated assembly lines.
| Feature | Specification |
|---|---|
| Speed | 15 - 18 Case/Min |
| Power Supply | 415V, 3-Phase |
| Air Pressure | 5 - 6 Bar |
| Machine Dimension | 2600*1400*2000 mm |
| Carton Size | Min: 300*180*100 mm Max: 450*400*300 mm |
• Efficient Box Handling System: Advanced box delivery mechanism ensures convenient loading and smooth packing operations.
• Automatic Carton Forming: Precisely selects and erects boxes from stacked flat cartons for consistent output.

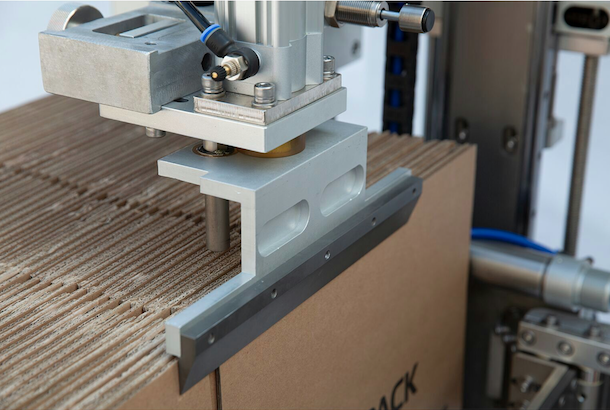

• High-Accuracy Pin Pick-Up System: Offers superior precision and reliability compared to conventional vacuum systems.
• Premium Quality Components: Built using international-grade imported parts for enhanced durability and performance.
• Continuous Operation with Vertical Storage: Vertical cardboard magazine allows refilling without interrupting production.
• Compact & Durable Design: Lightweight structure combined with robust construction ensures long-lasting performance.

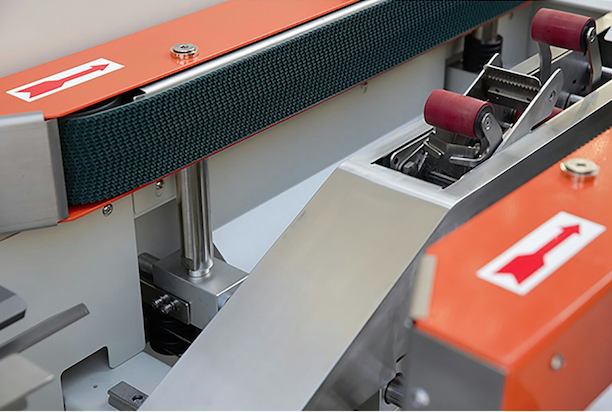

• High-Speed Tape Sealing Mechanism: Belt drive and split system enable fast and efficient carton sealing.

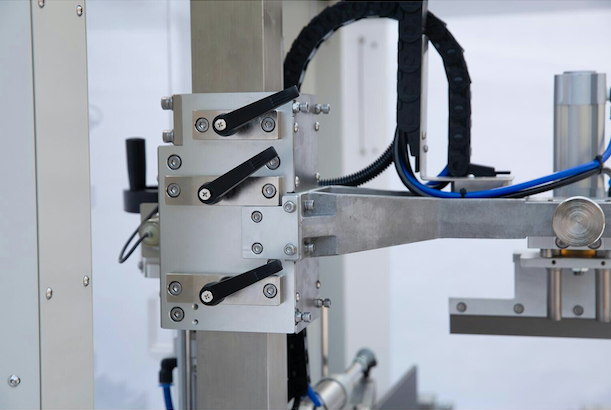

• Flexible Size Adjustment: Easily accommodates different carton sizes with quick and simple changeovers.

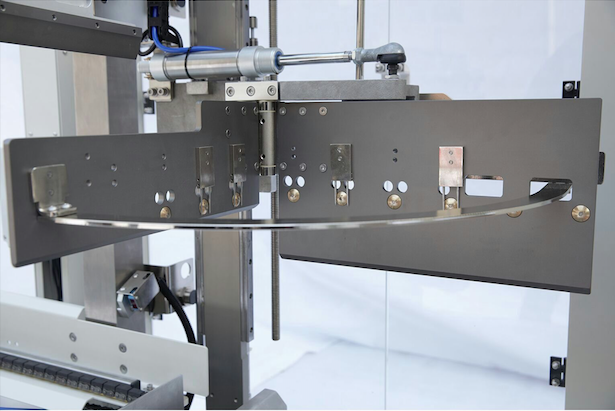

• Integrated Folding & Sealing System: Streamlined design improves overall operational efficiency and reduces manual intervention.
• Enhanced Safety & Smart Alerts: Equipped with safety blade protection and alarm systems for box errors, tape absence, and door safety.
• Automatic Carton Forming: Precisely selects and erects boxes from stacked flat cartons for consistent output.
• High-Accuracy Pin Pick-Up System: Offers superior precision and reliability compared to conventional vacuum systems.
• Premium Quality Components: Built using international-grade imported parts for enhanced durability and performance.
• Continuous Operation with Vertical Storage: Vertical cardboard magazine allows refilling without interrupting production.
• Compact & Durable Design: Lightweight structure combined with robust construction ensures long-lasting performance.
• High-Speed Tape Sealing Mechanism: Belt drive and split system enable fast and efficient carton sealing.
• Flexible Size Adjustment: Easily accommodates different carton sizes with quick and simple changeovers.
• Integrated Folding & Sealing System: Streamlined design improves overall operational efficiency and reduces manual intervention.
• Enhanced Safety & Smart Alerts: Equipped with safety blade protection and alarm systems for box errors, tape absence, and door safety.
