| Electrical: | 380/400 V, 3 phase, 50 Hz |
| Speed: | Up to 10 CPM depending upon the box size. |
| Case Space: | fed with 250 mm minimum spacing range: RSC cases, |
| Sensors: | Omron / Sick/Banner |
| Safety Switches: | Schmersal |
| Pneumatics: | SMC/FESTO |
| PLC Control: | NA |
| Motor Gearbox: | Bonfigloli/Motovario |

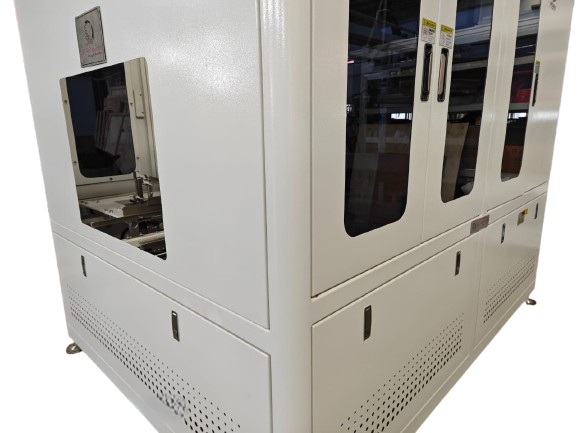

A tray forming machine is an advanced device specifically engineered to automate the creation of trays or cartons from flat sheets of cardboard or similar substances. These machines are widely utilized across various sectors such as food & beverage, pharmaceuticals, and consumer goods to produce robust and uniform trays capable of securely holding products.
The main purpose of a tray forming machine is to transform a flat, pre-cut piece of material into a tray or carton with exceptional accuracy. The machine may apply adhesive as necessary and ensures that the tray is formed correctly to adhere to particular design and structural specifications. This automation not only enhances production speed but also ensures uniformity in the quality of the trays.
| Model: | EOL-15 |
| Power Supply: | Single Phase/Three Phase |
| Max.Carton Size(W*H): | 500 x 600 |
| Min.Carton Size(W*H): | 180X130 |
| Taping Speed: | 20m/min |
| Production Speed: | Up to 12 matrix per minute |
| Sealing Type: | Continuous Servo Based Sealer |
| Cross Sealer Length: | 250 mm to 300 mm |
| Max Film width: | 600 mm to 650 mm |
| Suitable Film: | POF, PE |
| Film Thickness Max: | Up to 50 Micron |
| Product Size (WxLxH): | 150 x Unlimited x 200 |
| Speed: | 12 to 15 CPM |
| Case-Spacing: | Automatic |
| Case-Range: | RSC cases |
| Case-Detection: | Barcode Scanning |
| Power Supply: | 380/ 400 Volt, 3 phase, 60 Hz |
| PLC & Control: | Allen Bradley |
| Filling Type: | Pouch Filler |
| Sealing Type: | Jaw type |
| Usage/Application: | Liquid |
| Capacity: | 500-1000 pouch/hour |
| Material: | MS/SS304 |
| Item-Code: | LE-100 |
| Capacity: | 80 BPM |
| Color: | Silver |
| Condition: | New |
| Power Supply: | 380/ 400 Volt, 3 phase, 60 Hz |
| Speed: | Up to 12 to 15 CPM |
| Sensors: | Omron/ Sick |
| AC Motors: | Bonfiglioli |
| Pneumatics: | SMC/FASTO |
| Description: | Pauch Sealing Machine |

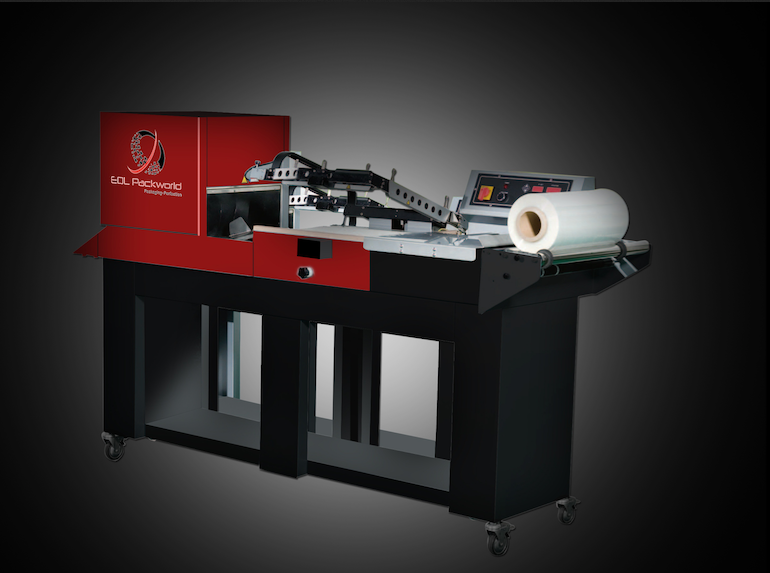

| Description: | Red & Black L-Sealer Machine |
| Sealing-Speed: | Big carton: up to 5 cartons/minute Small carton: up to 12 cartons/minute |
| Power Supply: | 180W |
| Control-Panel: | Schneider |
| Material: | MS Powder Coated |

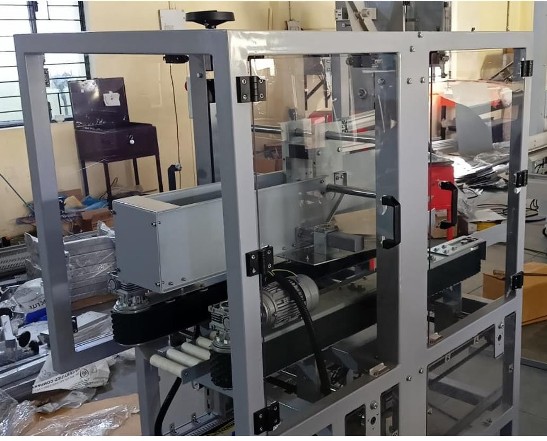

| Description: | Automatic carton forming and sealing machine |
| Carton-Size: | L250~510 x W200~380 x H120~500mm (2”) L250~510 x W225~380 x H120~500mm (3”) |
| Power: | 3 Phase, 220/380/415/440V |
| Material: | MS powder coated |
| Description: | Suitable for forming and sealing cartons of same size |
| Speed: | up to 1 - 5 cartons per min |
| Material: | MS/SS |
| Description: | The Gantry 100 is a Pick & Place robotic case packing system with two axes for high-speed horizontal case loading. |
| Operation: | Fully Automatic |
| Speed: | Upto 8 cycle/min |
| Frame Material: | SS304/MS |
| Motor: | Bonfiglioli/ SEW/ Equivalent |
| Speed: | 250-300 soaps/min (single) |
| Sensor: | SEC/ OMRON |
| Motor: | AB |
| Pneumatics: | Festo/ SMC |
| Bearings: | FAG/ SKF |

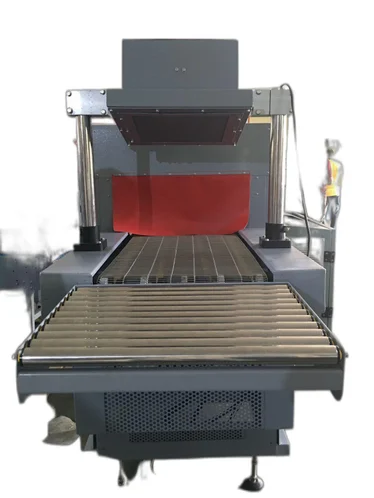

| Packaging Type: | Shrink Bundling |
| Packaging Size: | Customized as per product requirement |
| Usage/Application: | For 50 micron and above LDPE |
| Transverse Direction: | N/A |
