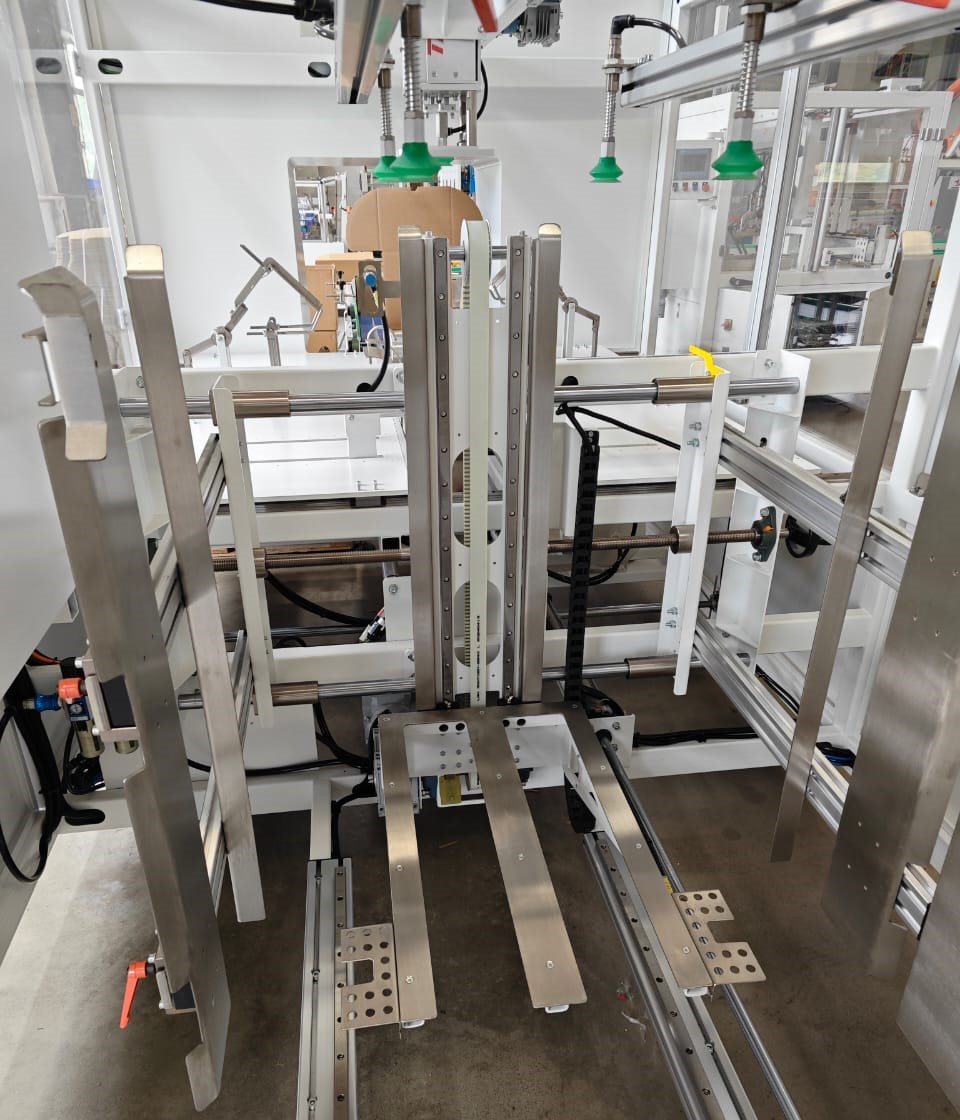

The Tray Forming Machine is an advanced packaging solution engineered to automate the forming of corrugated trays. The machine seamlessly converts flat blanks into perfectly shaped trays through a synchronized process of folding, gluing, and forming.
The high-performance components of the machine ensures consistent output even at high speeds making it ideal for industries like food & beverage, pharmaceuticals, and FMCG etc.

Speed Up to 15 Tray/min

Electricity 220V / 50Hz

Machine Body Stainless Steel

Maintenance Low

Machine Description
Specifications
Main Features

The Tray Forming Machine is designed to simplify end-of-line packaging by automatically forming trays from flat corrugated sheets. It eliminates manual handling, and ensures uniform tray formation for better product presentation and protection.
It supports a wide range of tray sizes and styles, making it suitable for various applications including bottled products, cans, cartons, and shrink-wrapped bundles ensuring strong, well-shaped trays.

Feature	Specification
Speed	12 - 15 Tray/Min
Power Supply	220V, 3-Phase
Material Type	Corrugated/ Cardboard etc.
Magazine Size	300 - 500 Trays
Adhesive	Hot Melt Glue/ Flap Fold Tuck In

• High-Speed Operation: Designed for continuous production with fast and consistent tray forming capabilities.
• Automatic Functionality: Fully automated process including tray picking, forming, folding, and sealing.
• Robust Construction: Built with a heavy-duty frame to ensure durability and long service life in industrial environments.
• Versatile Tray Sizes: Capable of handling a wide range of tray dimensions with quick and easy changeovers.
• Precision Forming Mechanism: Ensures accurate folding and perfect tray shape for reliable product handling.
• User-Friendly Interface: Equipped with an intuitive control panel or HMI for easy operation and monitoring.
• Compact Footprint: Space-saving design allows easy integration into existing production lines.
• Low Maintenance Design: Engineered with minimal moving parts for reduced wear and easy maintenance.
• Efficient Adhesive/Locking System: Supports glue or lock-type tray forming for secure and stable trays.
• Safety Features: Includes safety guards, sensors, and emergency stop systems for operator protection.

Videos

Machine Selection Perspective

A machine should be judged by how confidently it performs after installation, not only by its brochure specifications.

When evaluating a packaging machine, manufacturers need to consider operating consistency, product handling behavior, floor conditions, maintenance access, and the ease of integrating the machine with existing line controls. A dependable machine creates value by reducing variability and helping teams sustain output over time.

Production Stability

The right configuration should support repeatable performance across changing shifts, product batches, and normal operating fluctuations.

Service Readiness

Documentation, backups, wear-part planning, and maintenance accessibility all contribute to faster response and lower operational disruption.

Future Compatibility

A well-chosen machine should leave room for throughput improvement, pack-format evolution, and broader line integration as the factory grows.

EOL Packworld approaches machine delivery with the expectation that every installation should remain practical, serviceable, and production-ready long after commissioning is complete.
