Rotary Unscrambler

Overview

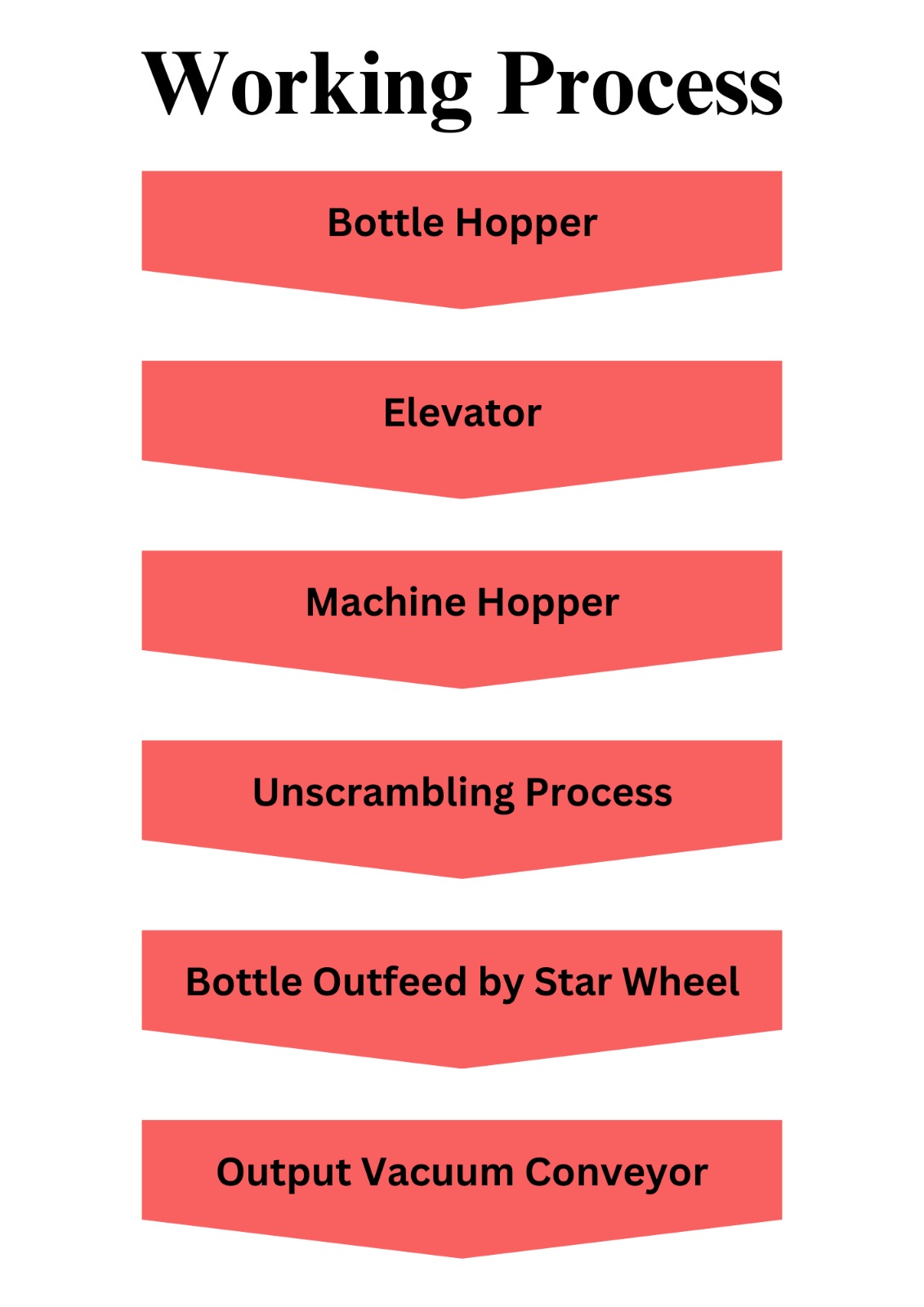

A bottle Unscrambler is a high-volume manufacturing machine that organizes and aligns bottles efficiently. Its primary function is to sort a bulk supply of bottles into a single-file line for subsequent processes like filling, capping, or labeling. This mechanism utilizes a combination of rotating discs, belts, and guides for the unscrambling effect.

The Rotary Unscrambler is specially designed for PET, HDPE and PP bottles and caters a wide range of plastic and glass bottle of different sizes.

It is a perfect solution for industries such as Pharmaceutical, Food & beverages, Cosmetics & Personal care and Consumer Goods etc.

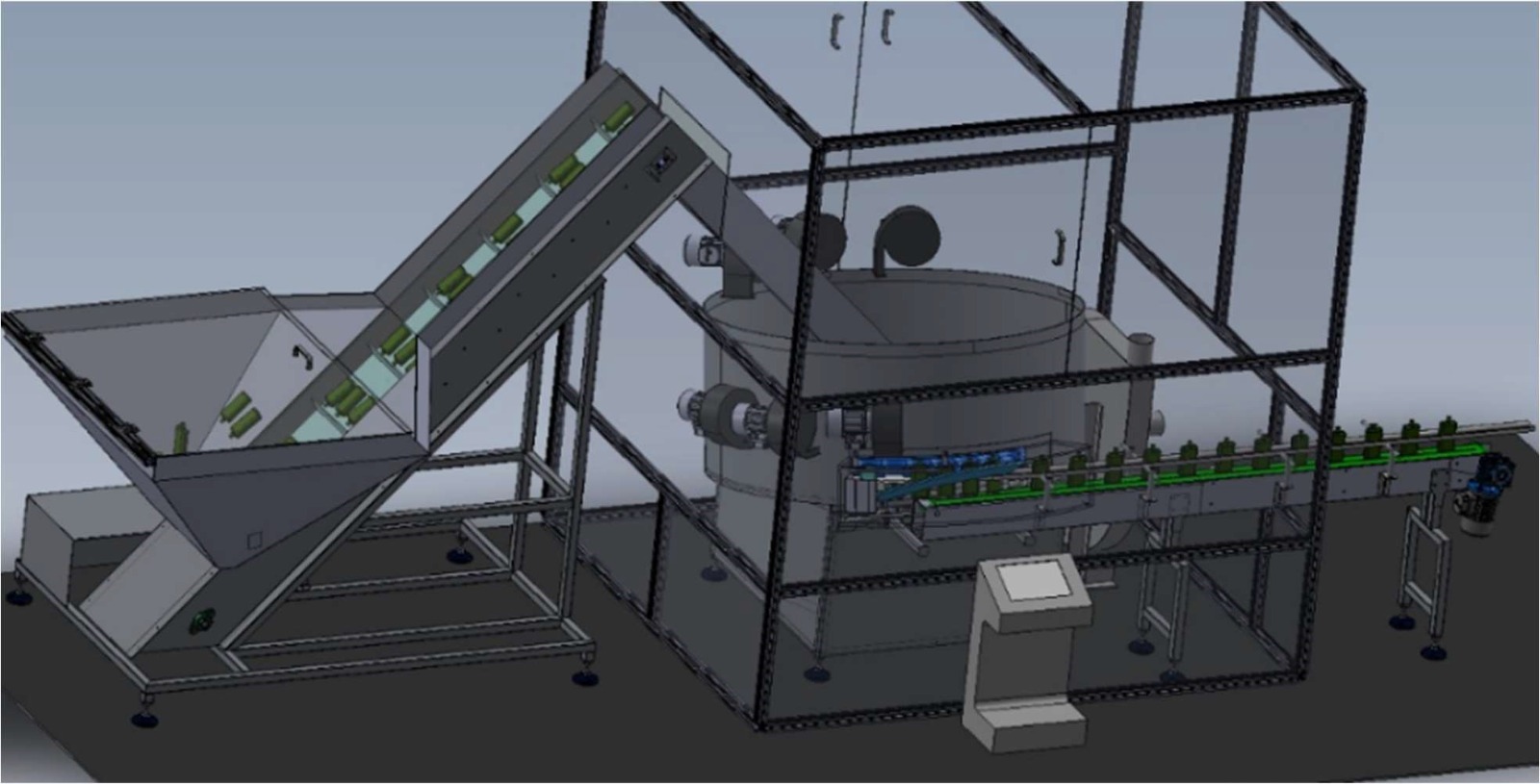

LP-250 Automatic Bottle Unscrambler is used to make the random bottles orderly to be fed to the production line. It is flexible to meet different bottle shape requirements from customers. It adopts a new unscrambling structure which makes the abrasion of the bottle minimum. The main frame is made of stainless steel and other materials are safe and durable. For electrical and pneumatic systems, components of reputed brands are being used. PLC is in charge of all working process; thus the equipment is reliable and of low failure rate.

• High speed rotary operation

• Gentle bottle handling

• 360 degree unscrambling

• Suitable for various types of bottles

• Compact footprint

• Ideal for high-volume production environments
