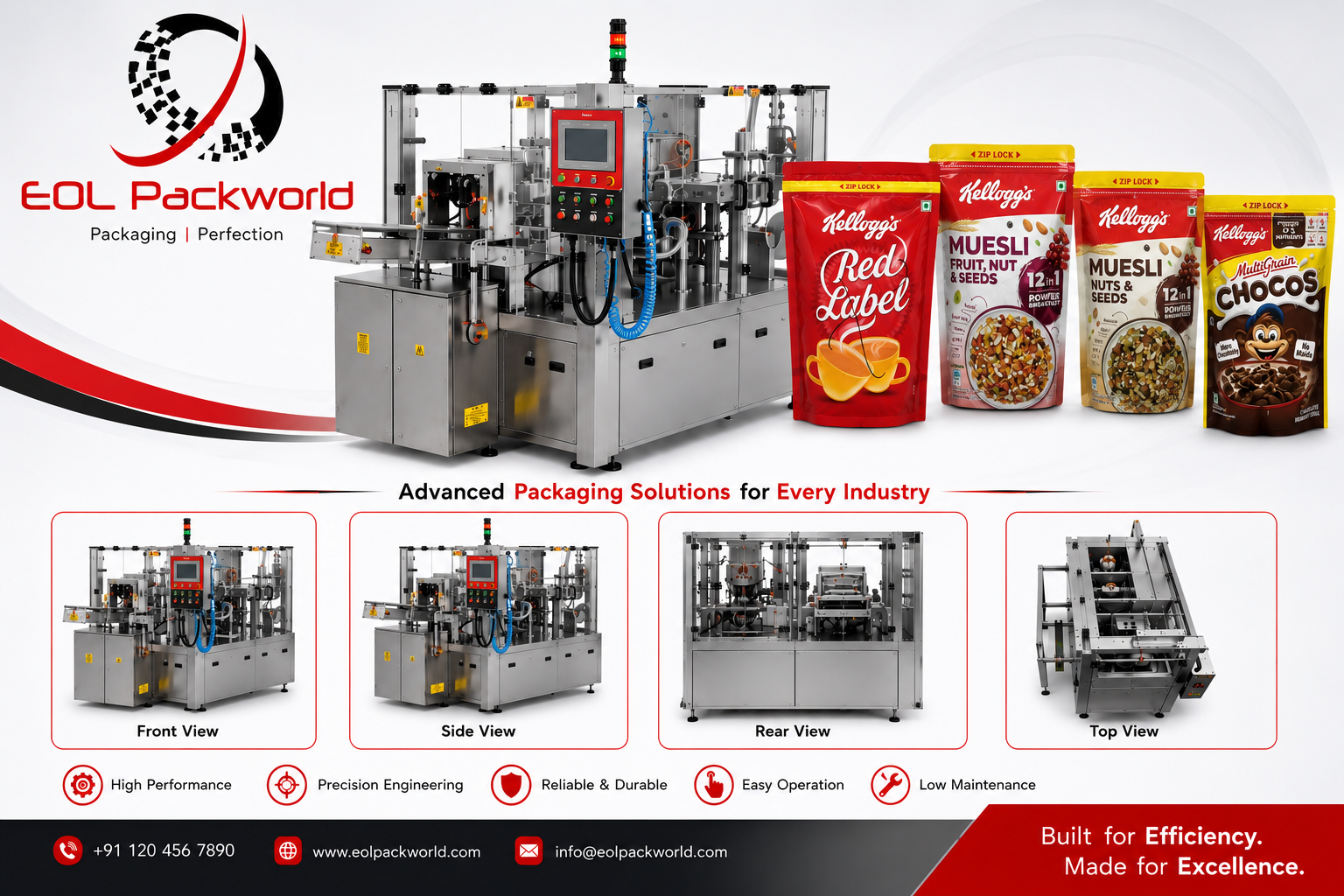

Intermittent Rotary Standy Pouch Filling Machine
A compact automatic system for handling preformed standy pouches through pouch pick-up, opening, filling, sealing and discharge. Its intermittent rotary motion holds every pouch securely at each process station for controlled and repeatable operation.
Operation
Intermittent rotary indexing
Process
Open, fill and seal
Pouch Format
Preformed standy pouches
Controls
PLC with touchscreen HMI
Preformed standy pouches are loaded into the magazine and transferred individually to grippers on the rotary indexing section. The machine checks pouch presence, opens the pouch mouth and positions it accurately below the filling station.
The selected filling system dispenses the product according to the application and recipe settings. After filling, the pouch mouth is conditioned and heat sealed before the finished pouch is released to the discharge conveyor. The intermittent design provides a stable dwell time at every station and makes format adjustment and operation straightforward.
The selected filling system dispenses the product according to the application and recipe settings. After filling, the pouch mouth is conditioned and heat sealed before the finished pouch is released to the discharge conveyor. The intermittent design provides a stable dwell time at every station and makes format adjustment and operation straightforward.
| Feature | Specification |
|---|---|
| Machine type | Automatic intermittent rotary pouch filling and sealing machine |
| Application | Preformed standy / stand-up pouches |
| Pouch handling | Magazine feeding, pouch pick-up, gripper transfer and opening |
| Filling system | Selected to suit product characteristics and required fill quantity |
| Sealing system | Controlled heat sealing with pouch-mouth alignment |
| Output | Application-dependent; based on pouch size, product and fill quantity |
| Format changeover | Adjustable for approved pouch sizes |
| Product contact parts | Stainless steel, selected to suit the application |
| Controls | PLC-based control with touchscreen HMI and recipe settings |
| Utilities | Electrical supply and clean compressed air as per final configuration |
| Safety | Full guarding, emergency stops and sensor-based interlocks |
• Automatic preformed pouch feeding from an operator-loaded magazine.
• Intermittent rotary indexing for stable processing at each station.
• Positive gripper handling throughout the filling and sealing cycle.
• Pouch-presence and pouch-opening detection.
• No-pouch-no-fill logic to reduce product loss.
• Filling arrangement configured for the product and target fill quantity.
• Controlled heat sealing for a neat and secure pouch closure.
• PLC and touchscreen HMI for settings, recipes, alarms and production monitoring.
• Stainless-steel construction with accessible areas for cleaning and maintenance.
• Safety guarding, interlocks and emergency-stop controls.
• Intermittent rotary indexing for stable processing at each station.
• Positive gripper handling throughout the filling and sealing cycle.
• Pouch-presence and pouch-opening detection.
• No-pouch-no-fill logic to reduce product loss.
• Filling arrangement configured for the product and target fill quantity.
• Controlled heat sealing for a neat and secure pouch closure.
• PLC and touchscreen HMI for settings, recipes, alarms and production monitoring.
• Stainless-steel construction with accessible areas for cleaning and maintenance.
• Safety guarding, interlocks and emergency-stop controls.
